Production System for Manufacturing Metal Parts

# Verification of Equipment Quantity # Verification of Workforce Size # Metal Parts Manufacturing # Cutting # Press Processing # Turning # Parameter Study

Purpose of this Simulation Model
Verify how many machines should be installed for the assumed order scenarios and determine the minimum required workforce for the selected equipment plan.

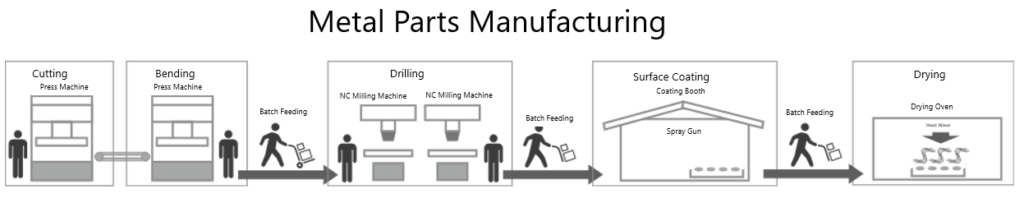

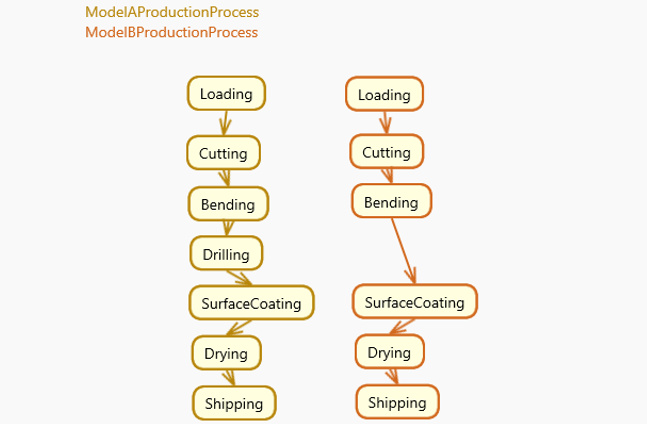

A production system for manufacturing metal parts. Cutting and bending are performed on a press machine, holes are drilled on a milling machine, and then surface coating is applied in a paint booth. Finally, the parts are dried in a constant-temperature tank to complete the process.
Request information

Model Overview

  • Purpose of the Simulation

  • This production system (as described above) manufactures metal components.

  • We are considering establishing the above production line and aim to evaluate the investment proposal using production simulation for the formulation of our mid-term management plan.

  • For each of the three demand forecast scenarios, we will determine the number of production units required to maintain appropriate production capacity.

  • Key Points
  1. Determine the appropriate number of equipment units to achieve the target production capacity by adjusting the number of units.
  2. Determine the minimum required manpower for the plan with the deemed appropriate number of equipment units.

Modeling Screen

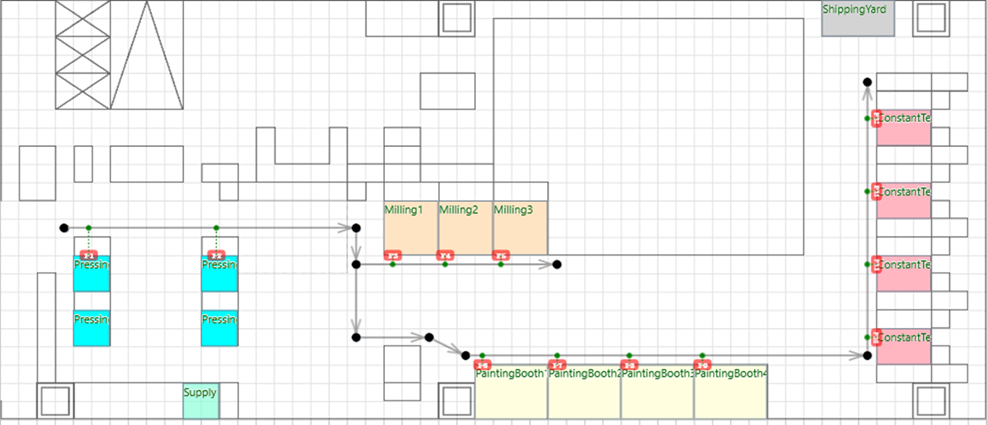

Floor Plan Information on Equipment Layout and Transport Routes
Process Plan Information on Process Sequence and Cycle Time

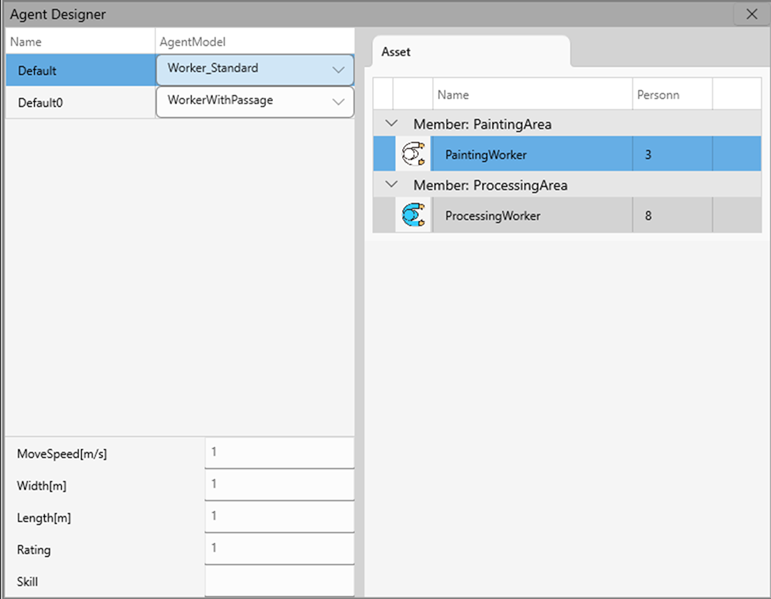

Workers Information on working hours, assigned teams, and number of personnel

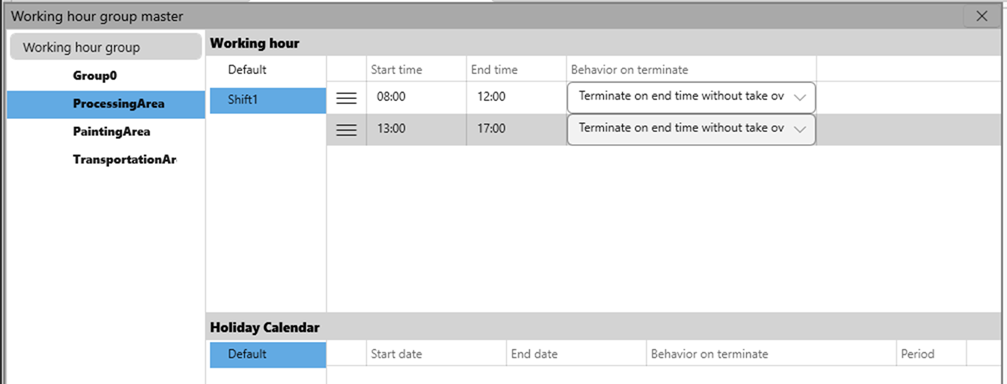

Working Hours Information on Workers' Working Hours

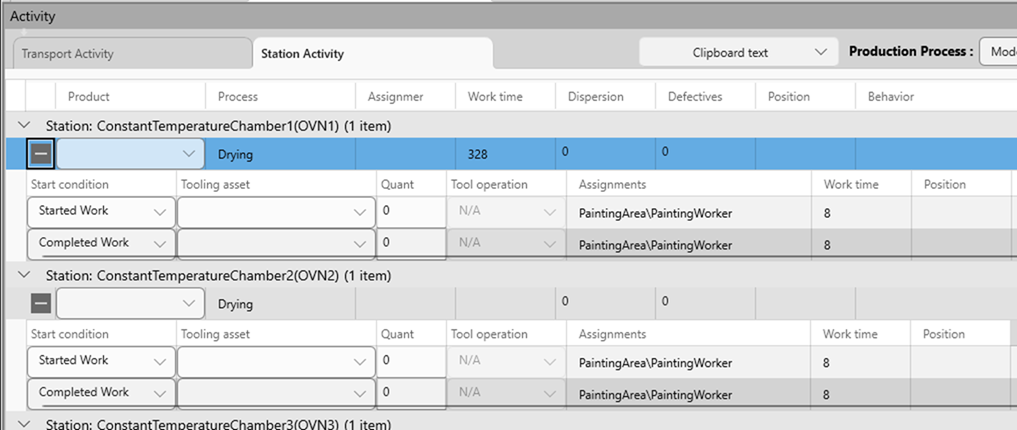

Worker Assignment 1 Information on the assignment of equipment setup tasks

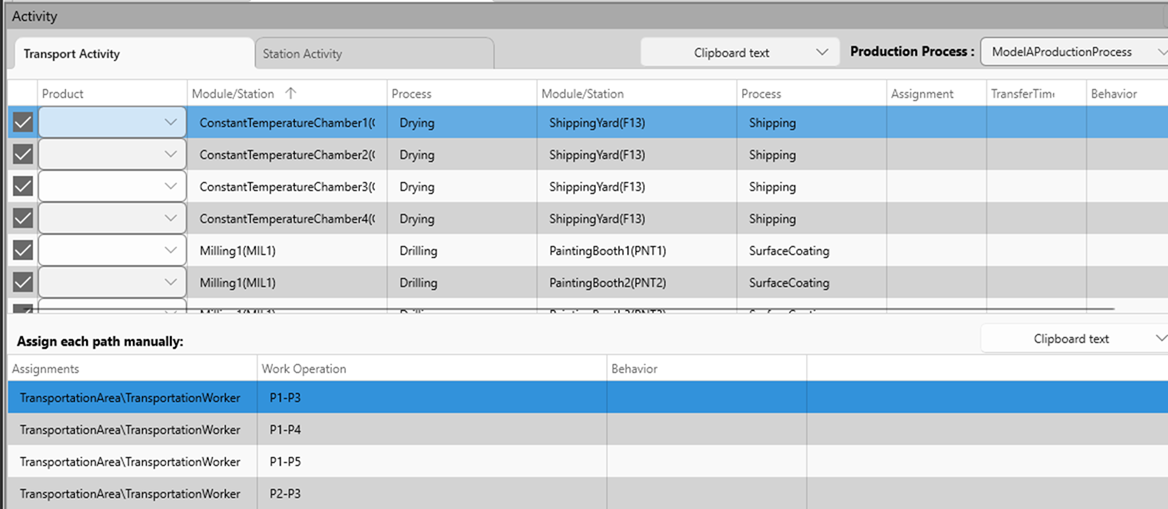

Worker Assignment 2 Information on assignments for transportation operations

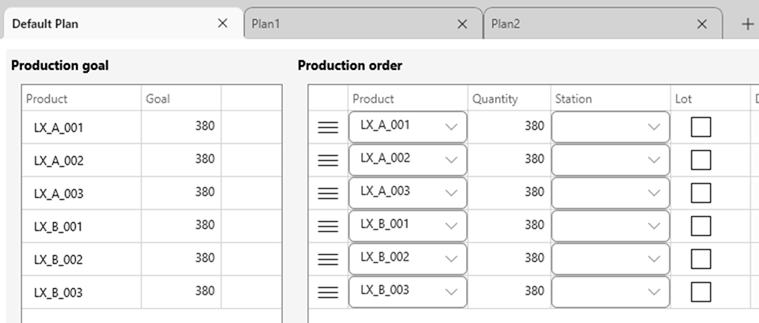

Production Targets Information on production target quantities and input sequence

This modeling was created using GD.findi MS.

It is a no-code production simulator that performs production simulations in a digital virtual space, providing powerful support for line design and process design.

Click here for product information

Output Report Example

■ Equipment Quantity Verification:

1. Method:

The bottleneck process (constant-temperature oven) was fixed at four units, and the required number of other machines was verified.
The simulation model was initially created with a larger number of machines, and then the number was gradually reduced for verification.

2. Result:

■Workforce Verification:

1. Verification Method

For this production plan, we employed Scenario 2, which represents an average production load. We initially created a simulation model using a larger workforce and then gradually reduced the number of workers to conduct the verification.

Note that even if production targets were met with a certain number of workers, if any worker’s utilization rate reached 95% (indicating no margin), we considered that worker to be insufficient.

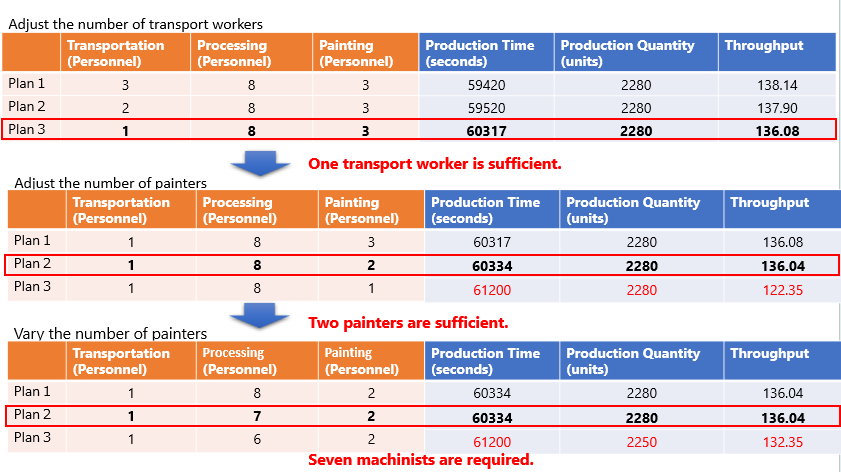

2. Verification Results

3. Conclusion

For the assumed average production load and the selected equipment plan, the recommended allocation is:

7 workers in the processing area
2 workers in the painting area
1 worker in the transportation area
